Description:

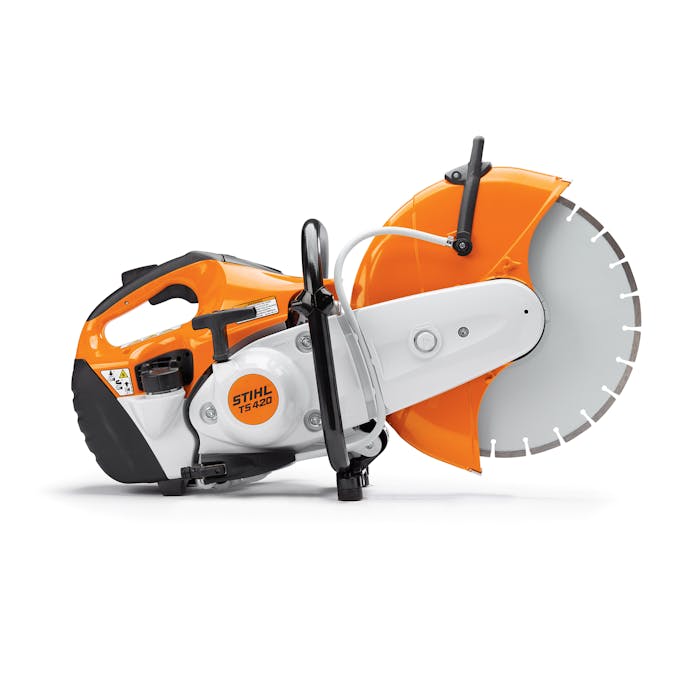

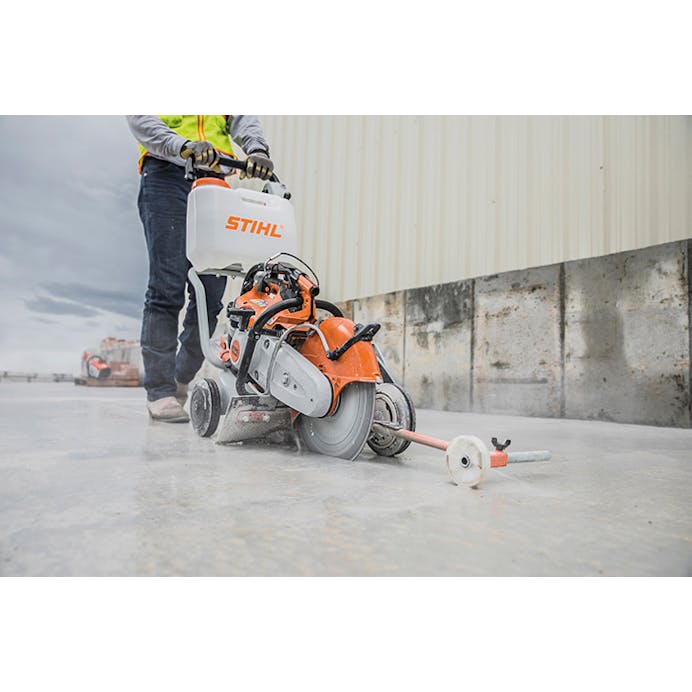

The TS 420 is a compact, lightweight, and dependable cut-off machine recognized for its consistent day-to-day performance. Equipped with a 14" cutting wheel, it delivers a maximum cutting depth of up to 4.9 inches, making it versatile for a wide range of applications. It features the same high-performance components found in the TS 410, including the advanced X2 air filtration system, which ensures a cleaner-running engine and significantly reduces filter maintenance. Designed with both power and user convenience in mind, the TS 420 is engineered to handle demanding tasks with efficiency and ease.

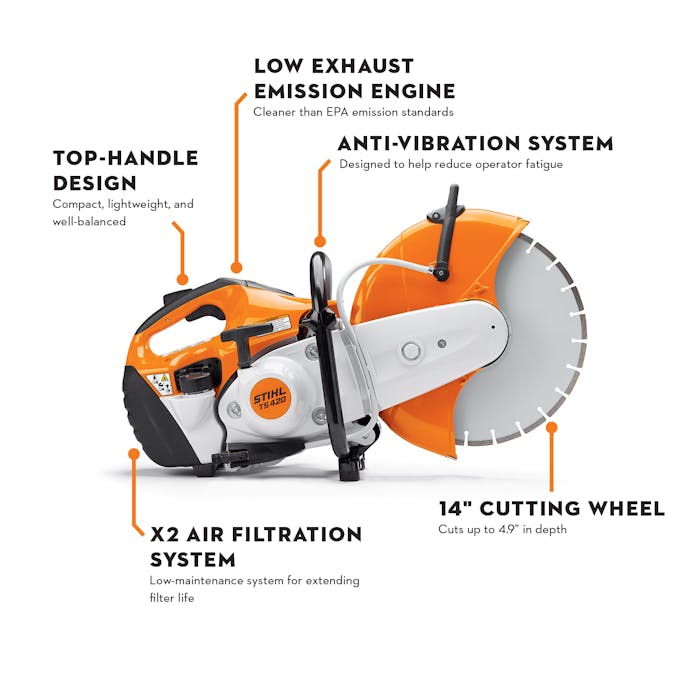

Features:

• Water Connection - Water connection with shut-off valve and quick connector.
• Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.

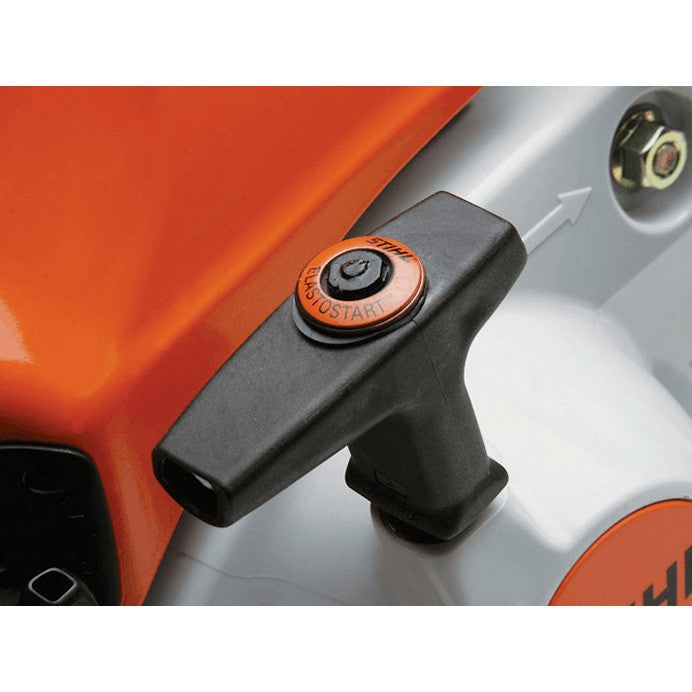

• STIHL® ElastoStart™ - The ElastoStart™ starter handle is a feature of STIHL®. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.

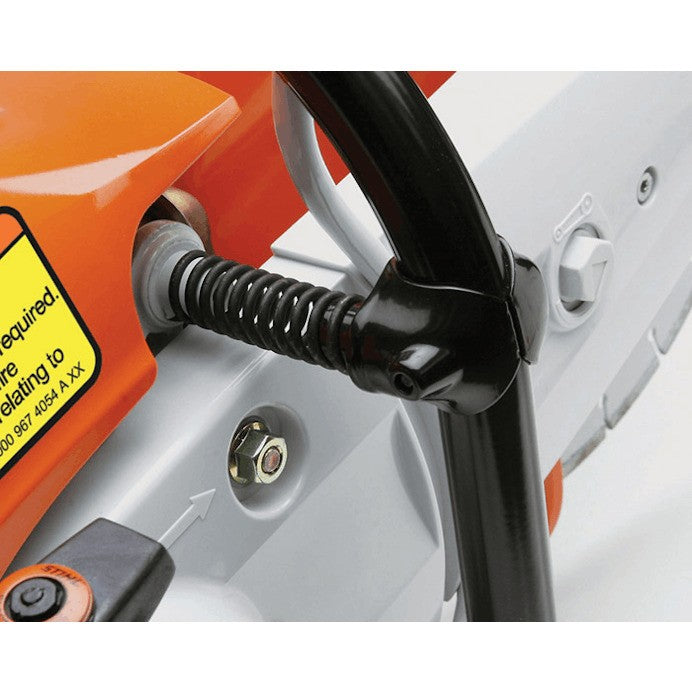

• Anti-Vibration System - STIHL® has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL® anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Bayonet-Style Filler Cap - Includes retainer for easy use, even with gloves on.
• Semi-Automatic Belt Tensioning - With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.

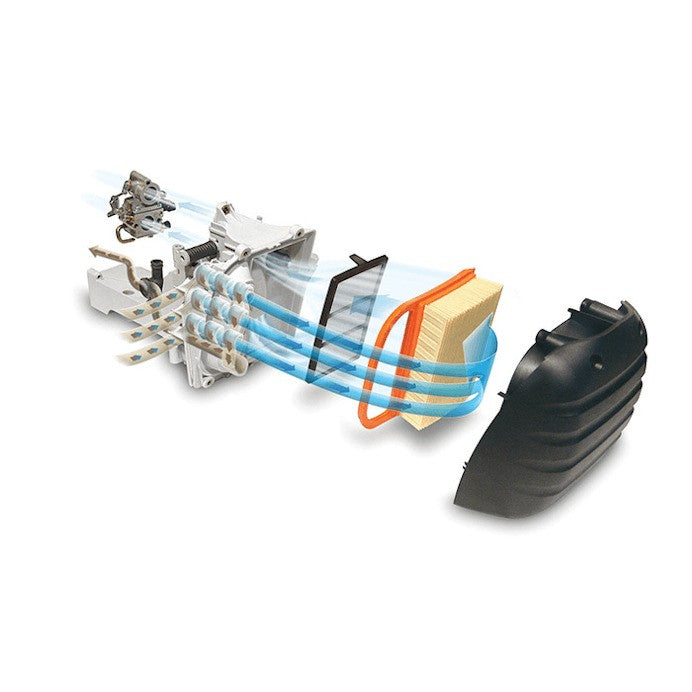

• X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.

Specifications:

• Power Source: Gas
• Weight: 21.2 lbs.
• Maximum Cutting Depth: 4.9 in.
• Maximum Wheel Size: 14 in.
• Maximum Spindle Speed: 5,350 rpm
• Arbor Size: 0.787
• Engine Speed: 9,000 rpm
• Engine Power: 4.4 bhp
• Fuel Capacity: 24 oz.
• Displacement: 66.7 cc

Width	Weight	Height	Length
0 Inch	21.2 Pounds	0 Inch	0 Inch
