Description:

• Easy push-button electric start Ariens® AX 369cc engine
• Wide 24" clearing width that moves 73 tons of snow per hour
• Premium features like an LED headlight, handwarmers, a remote deflector, electric start, and a one-hand interlock

Specification:

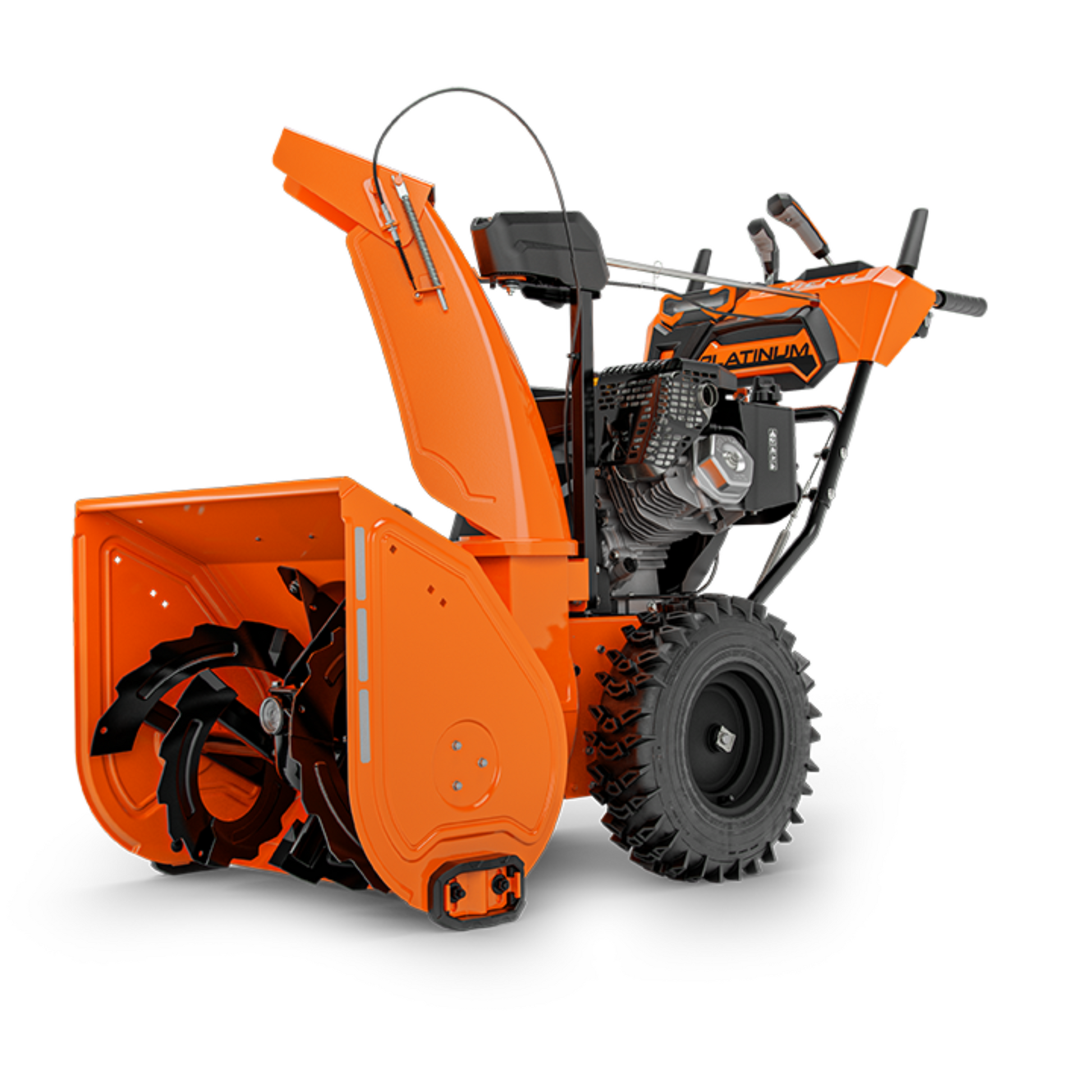

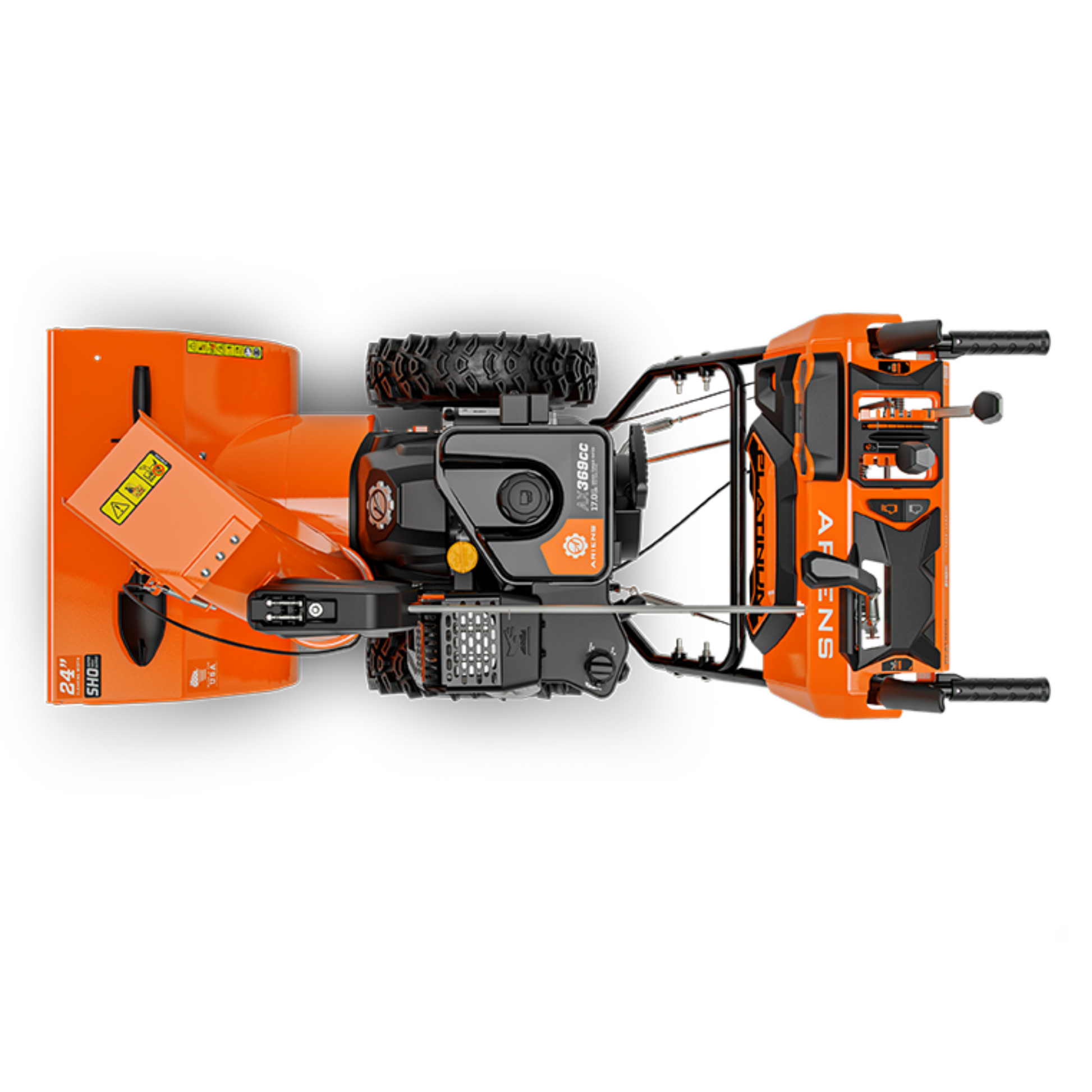

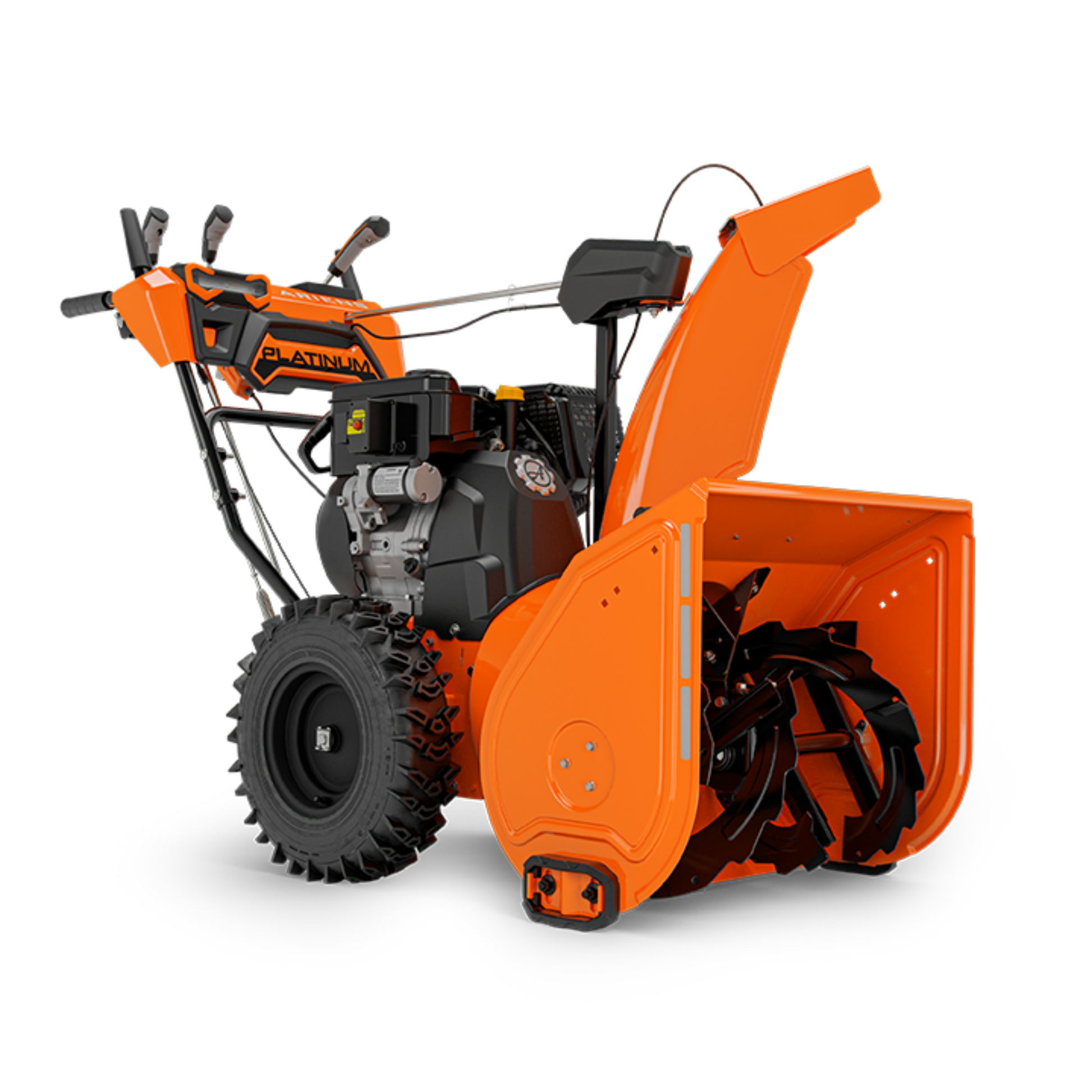

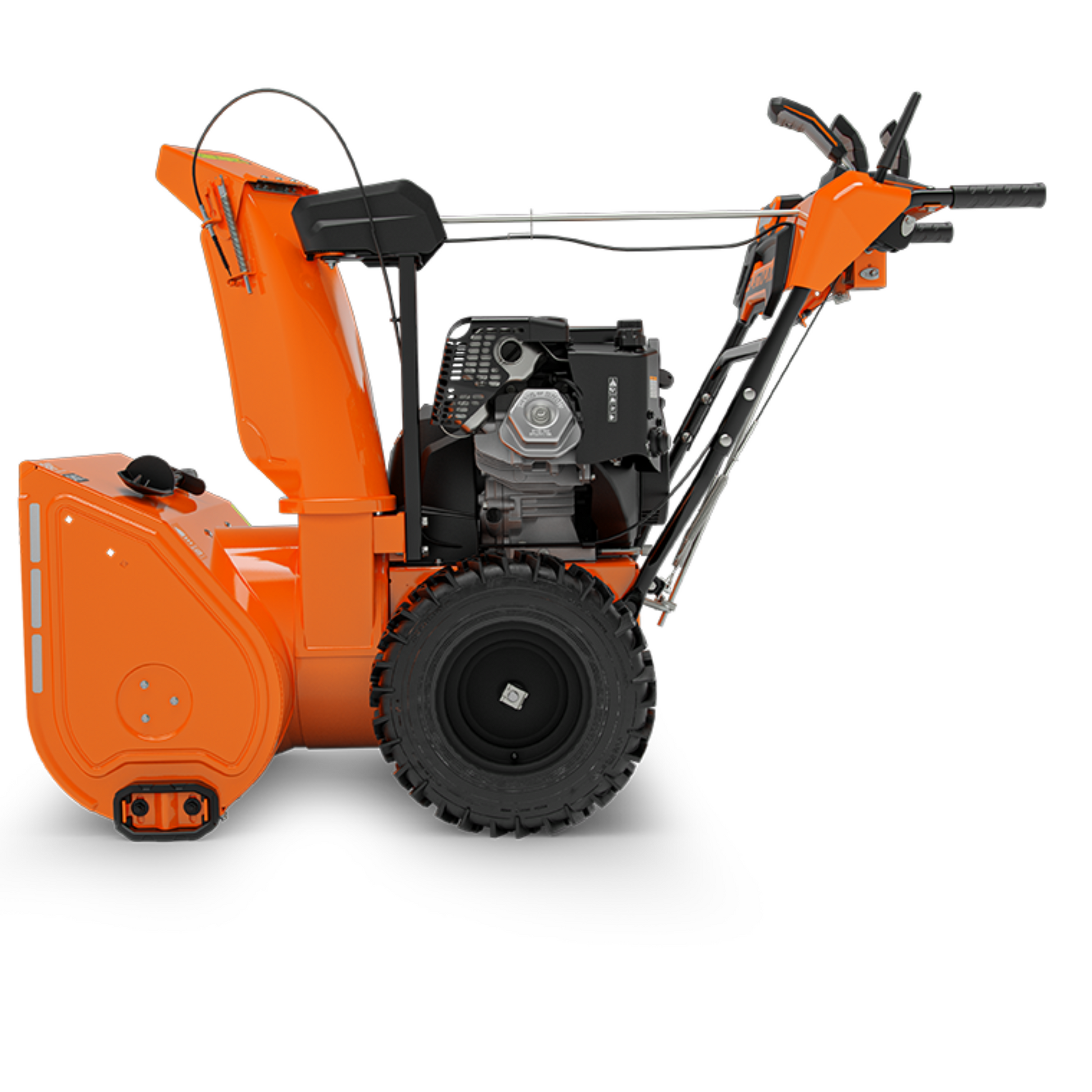

• Title: Platinum 24 SHO
• Model Number: 921063

Power Train:

• Engine: Ariens AX®
• Starting System: 120v / Electric
• Steering: Auto-Turn
• Drive Type: Disc-O-matic
• Speeds: 6 Forward/2 Reverse

Tires:

• Size: 16 In
• Type: Directional Snow Tread

Clearing Specs:

• Clearing Width (in/cm): 24 In
• Housing Height: 21 In
• Throwing Distance: 3 ft - 55 ft
• Chute Rotation: Quick Turn
• Chute Turning Radius: 200 degrees
• Deflector Control: In-Dash Lever
• Stage Type: Two Stage
• Auger Diameter: 14 In
• Auger Type: Steel Serrated
• Impeller Profile: High Speed Steel 3 Blade
• Impeller Diameter: 14 In
• Skid Shoes: Steel Reversible
• Scraper Bar: Steel Adjustable
• Gear Case: Cast Iron

Dimensions:

• Length: 58.3 In
• Width: 26.4 In
• Height: 45.9 In
• Weight (Assembled): 267 lb

Warranties:

• Product Warranty: 3 years residential use. 90 days commercial use
• Gear Case Warranty: 5 Year Consumer, 1 Year Commercial

Accessories:

• Features at a Glance:
• Light Type: LED
• Reflective Decals: Standard
• Handwarmers: Standard
• Remote Deflector Control: Standard
• Drift Cutters: Optional
• One Hand Interlock: Standard

Width	Weight	Height	Length
26.4	267 Pounds	45.9	58.3 Inch
