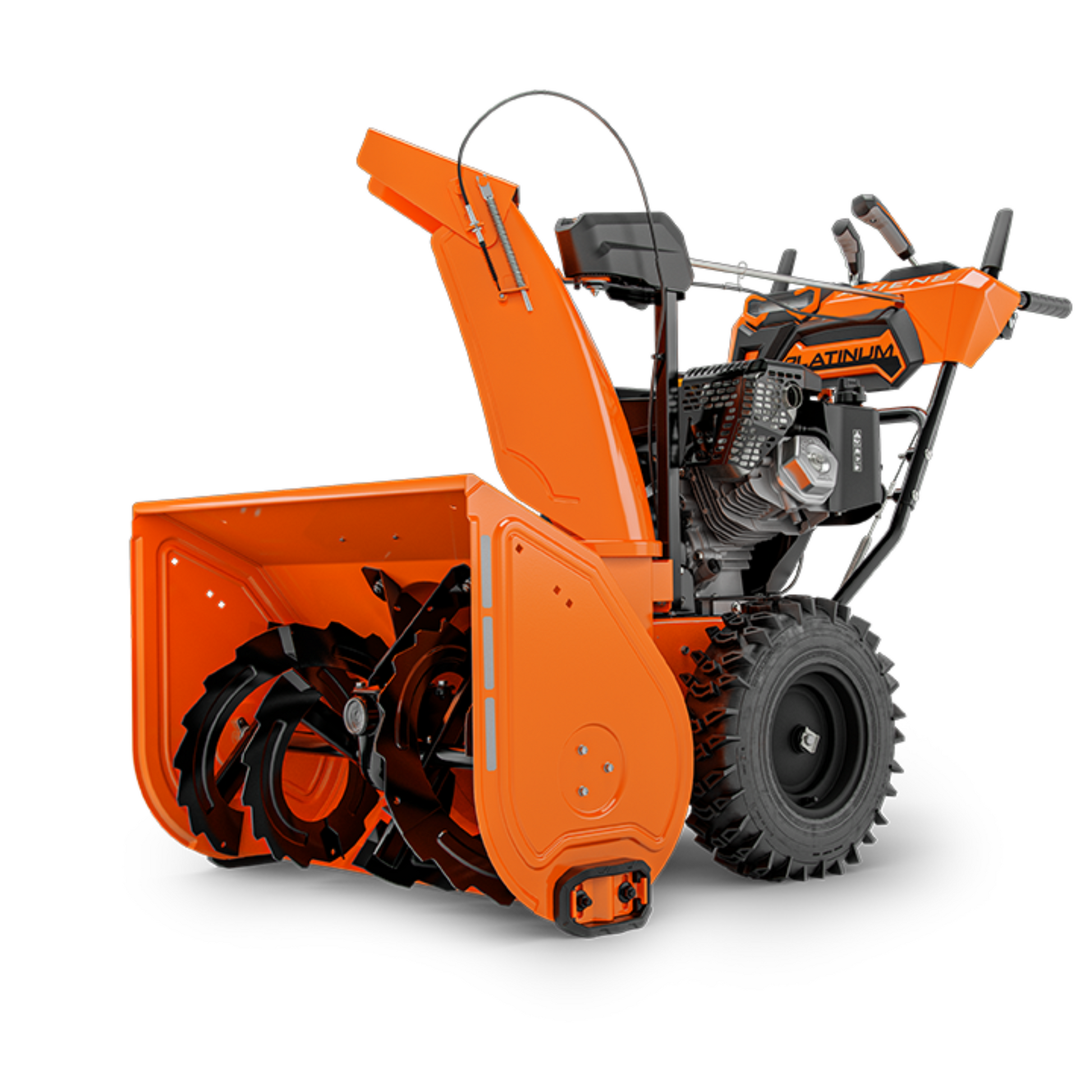

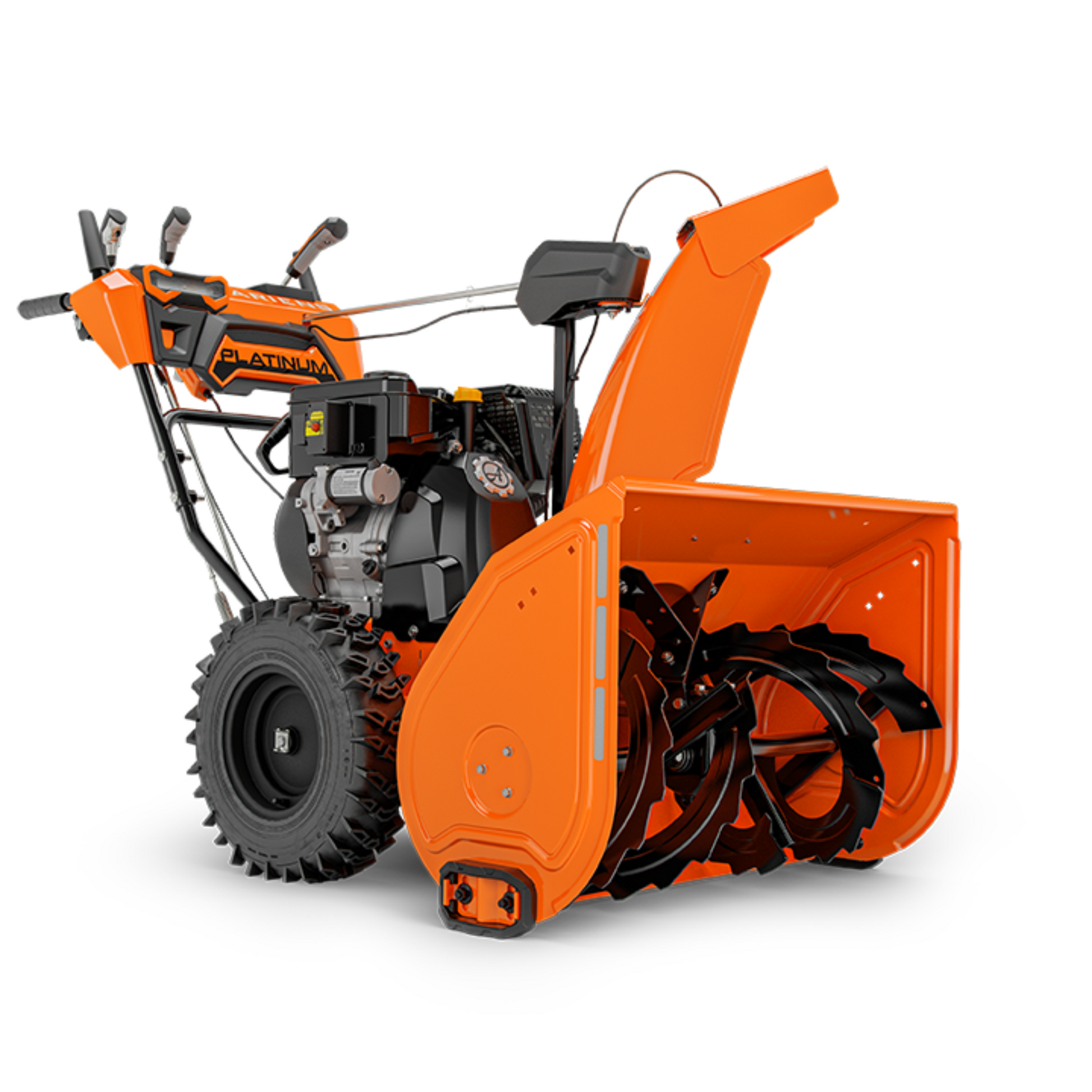

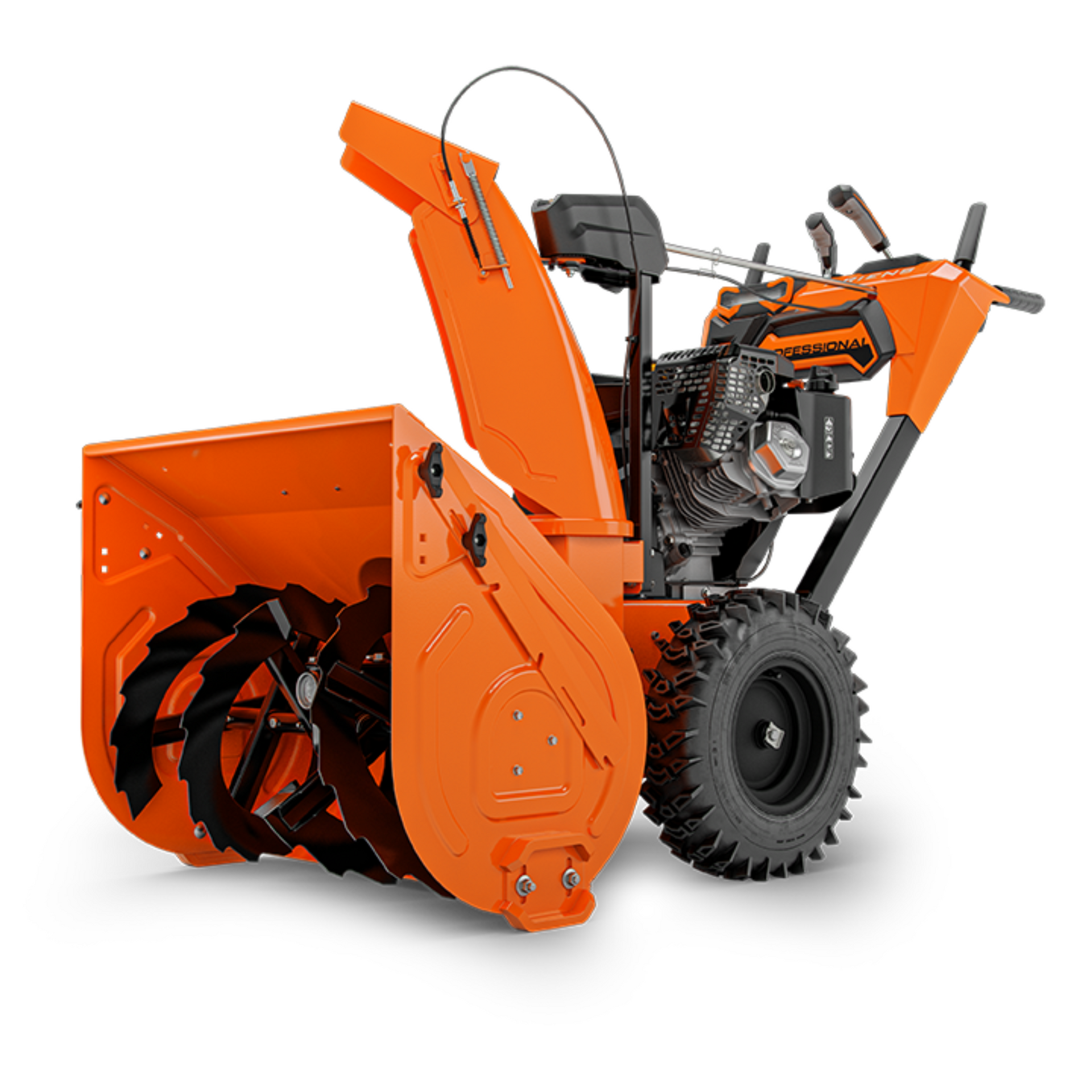

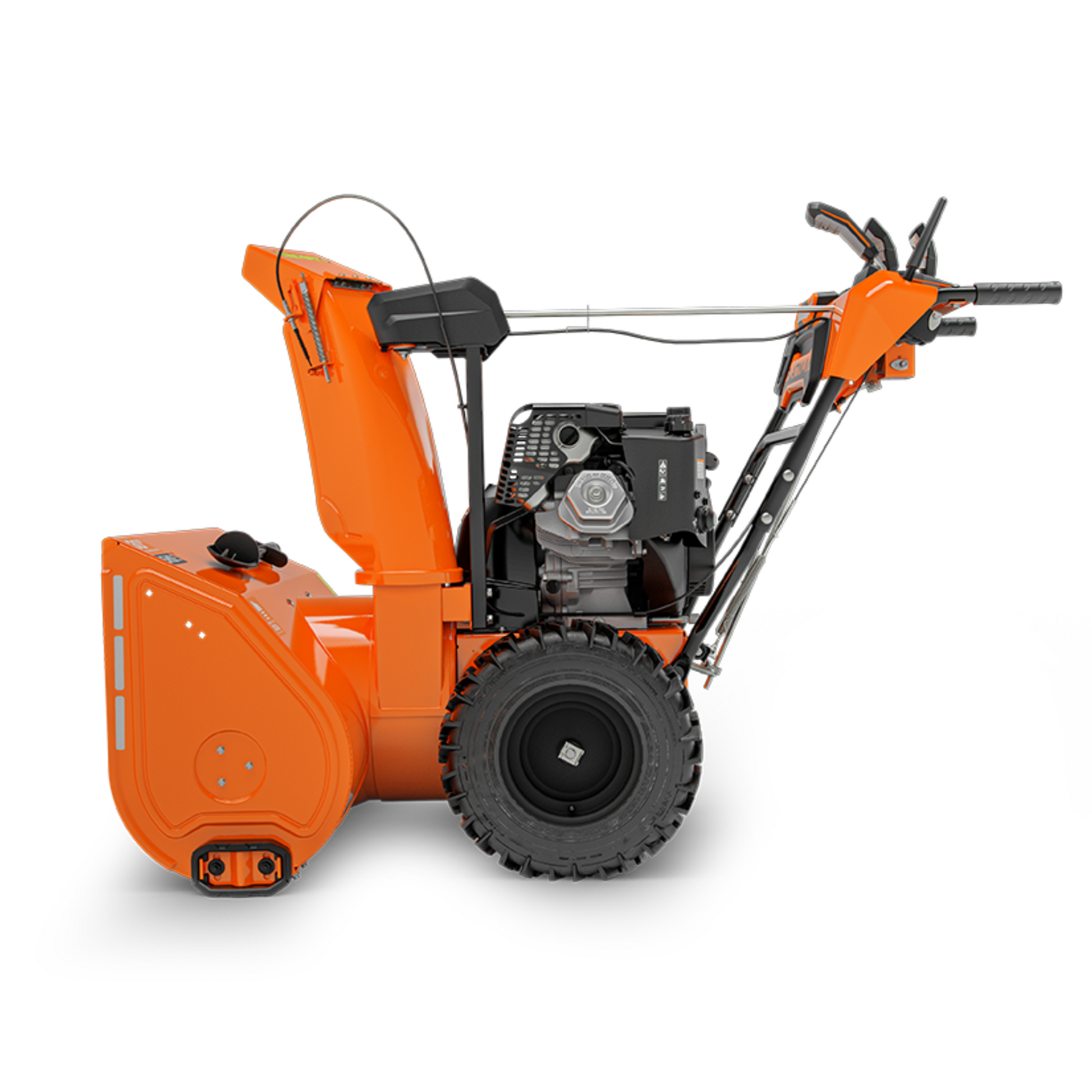

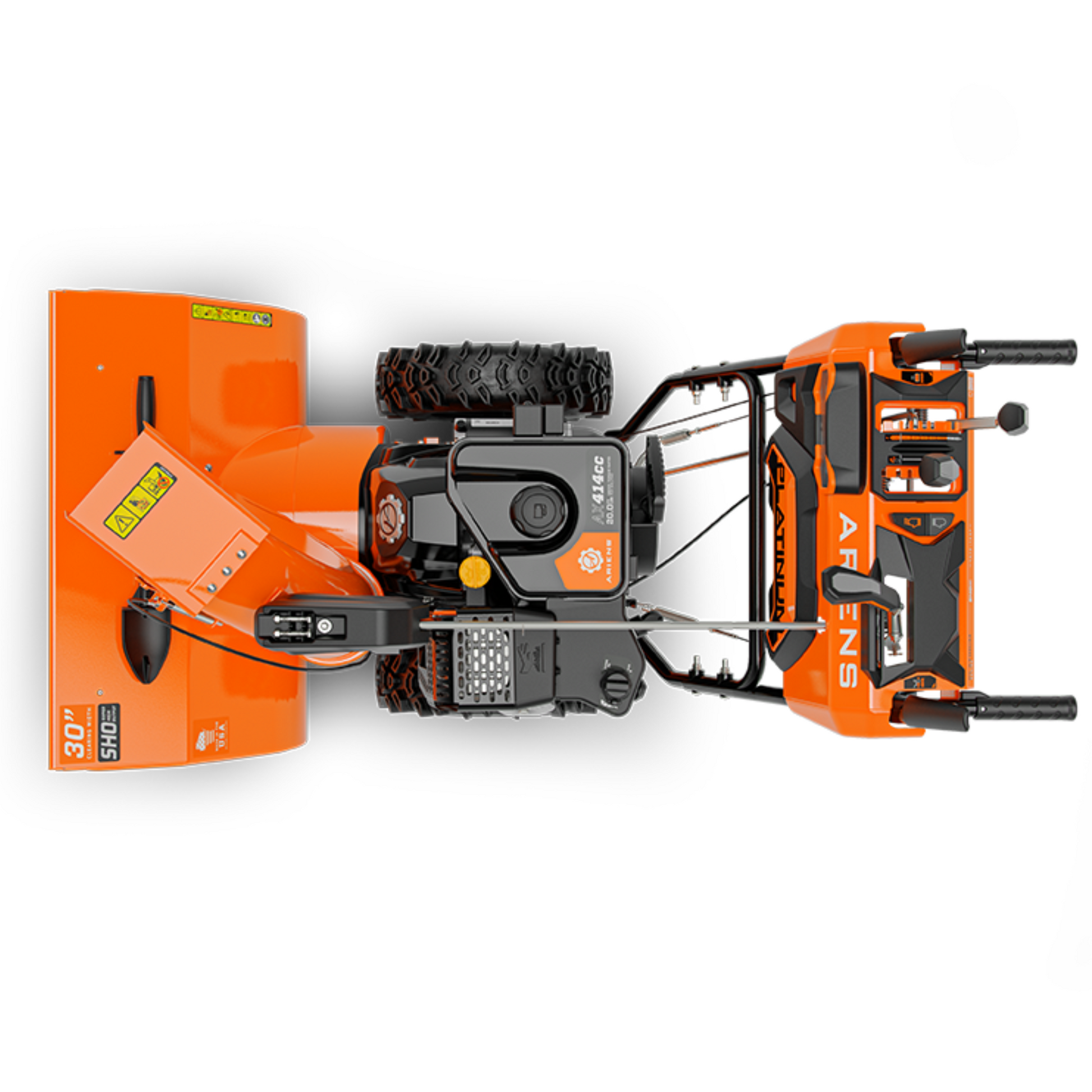

Description:

• Easy push-button electric start Ariens® AX 414cc engine
• Wide 30" clearing width that moves 82 tons of snow per hour
• Premium features like an LED headlight, handwarmers, a remote deflector, and one-hand interlock

Specification:

Power Train:

• Engine: Ariens AX®
• Starting System: 120v / Electric
• Steering: Auto-Turn
• Drive Type: Disc-O-matic
• Speeds: 6 Forward / 2 Reverse

Clearing Specs:

• Clearing Width: 30 inches (76.2 cm)
• Housing Height: 21 inches (53.3 cm)
• Throwing Distance: 3 feet (0.9 m) to 55 feet (16.8 m)
• Chute Rotation: Quick Turn
• Chute Turning Radius: 200 degrees
• Deflector Control: In-Dash Lever
• Stage Type: Two Stage
• Auger Diameter: 14 inches (35.6 cm)
• Auger Type: Steel Serrated
• Impeller Profile: High Speed Steel 3 Blade
• Impeller Diameter: 14 inches (35.6 cm)
• Skid Shoes: Steel Reversible
• Scraper Bar: Steel Adjustable
• Gear Case: Cast Iron

Dimensions:

• Length: 58.3 inches (148 cm)
• Width: 32.4 inches (82.3 cm)
• Height: 45.9 inches (116.6 cm)
• Weight (Assembled): 274 lbs (124.3 kg)

Warranties:

• Product Warranty: 3 years residential use, 90 days commercial use
• Gear Case Warranty: 5 years consumer, 1 year commercial

Accessories:

• Light Type: LED
• Reflective Decals: Standard
• Handwarmers: Standard
• Remote Deflector Control: Standard
• Drift Cutters: Optional
• One Hand Interlock: Standard

Width	Weight	Height	Length
32.4 Inch	274 Pounds	45.9 Inch	58.3 Inch
