Description:

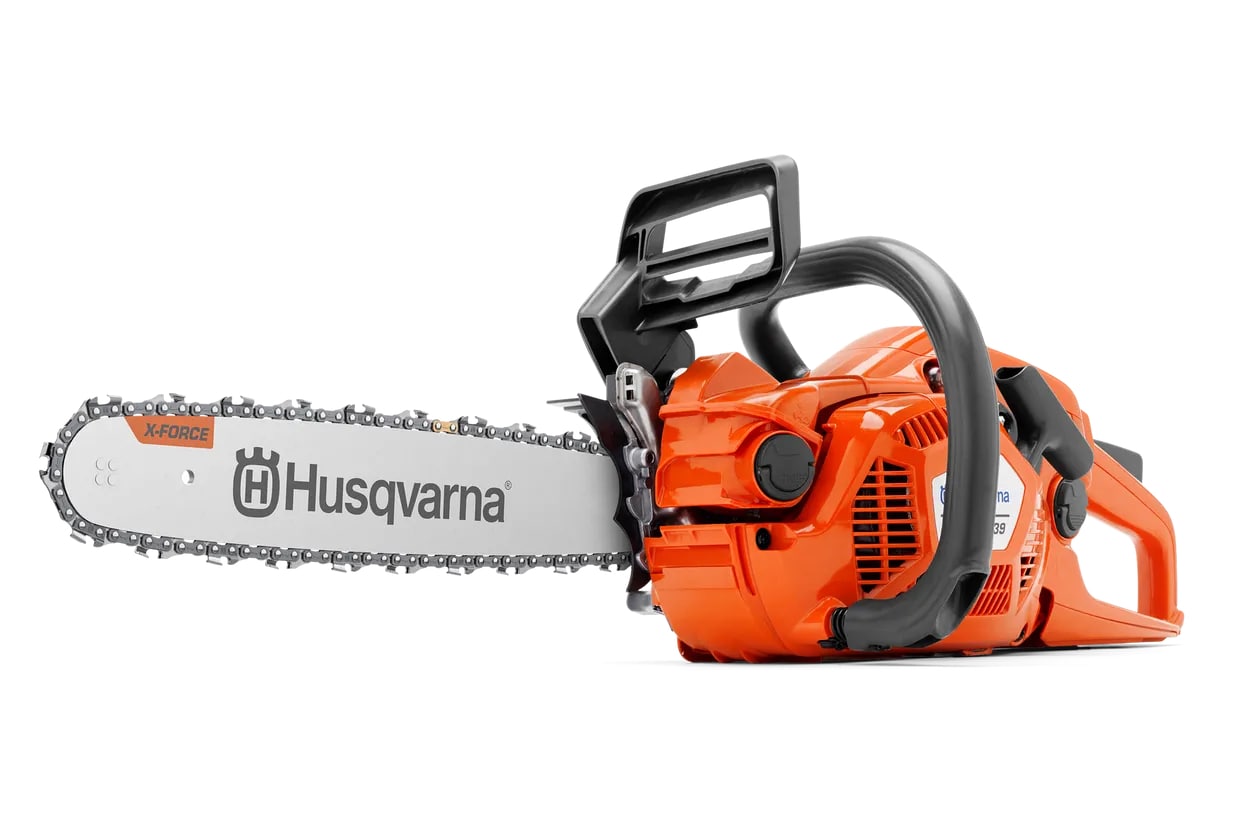

Extremely lightweight, compact and handy chainsaw for farmers and demanding consumers needing a versatile tool for lighter cutting tasks. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Smart Start®, fuel pump and Auto return stop switch provides easier starting.

Features:

• Air Injection™ Technology
• Powerful and Efficient X-TORQ® Engine
• Adjustable Oil Pump
• Quick-Release Air Filter
• Felling Marks
• Optimized saw body
• Side Chain Tensioning
• Quick release air filter cover
• LowVib® Technology
• Chain break window
• Smart Start® Technology
• Front handle ergonomics
• Quick Start with Air Purge
• Inertia-Activated Chain Brake
• Simple Starting

Specifications:

Engine & Performance

• Cylinder Displacement: 35.2 cm³
• Output Shaft Power: 2.01 hp
• Torque (Max): 1.57 Nm @ 7,500 rpm
• Clutch Engagement Speed: 4,200 rpm (±120)
• Idling Speed: 2,900 rpm
• Maximum Power Speed: 10,000 rpm
• Spark Plug: NGK CMR6H
• Electrode Gap: 0.02 in

Cutting Equipment

• Chain Pitch: 3/8" mini
• Gauge: .050"
• Bar Length: 16 in (40 cm)
• Recommended Bar Length (Min–Max): 12 – 16 in

Chain Speed

• At Max Power: 62.3 ft/s

Dimensions & Weight

• Weight (Excl. Cutting Equipment): 8.64 lbs

Sound and Noise

• Sound Pressure Level at Operator’s Ear: 100 dB(A)
• Sound Power Level (Guaranteed / Measured): 112 dB(A)

Vibration

• Front Handle: 8.0 m/s²
• Rear Handle: 5.2 m/s²

Lubrication

• Oil Tank Volume: 0.42 US pint

Emissions

• CO₂ Emissions (EU V): 860 g/kWh

Width	Weight	Height	Length
0 Inch	8.64 Pounds	0 Inch	0 Inch
