Description

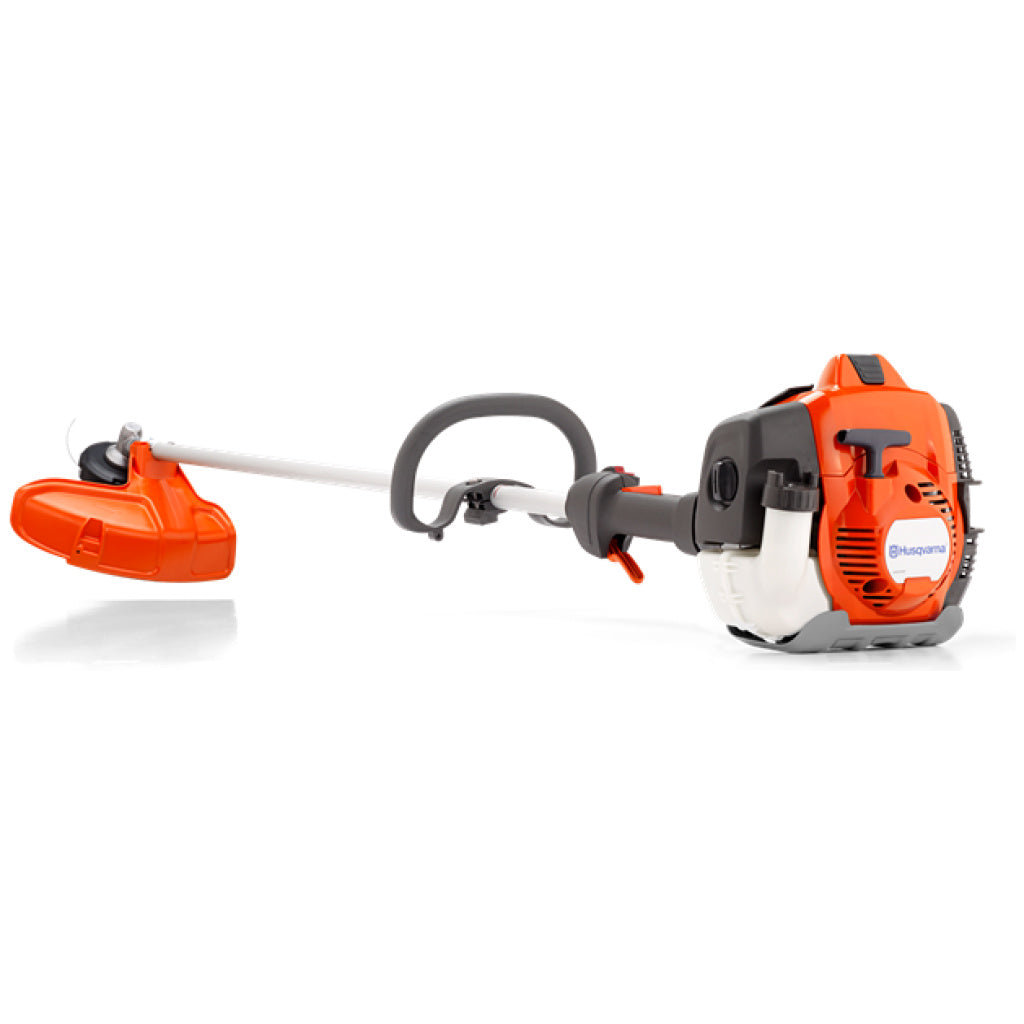

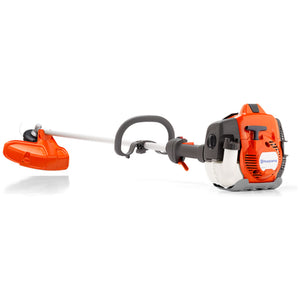

525L

Stay on the cutting edge of your professional maintenance work. The Husqvarna 525L is a robust, durable trimmer that’s intended for daily use by hardworking landscapers. Easy to maintain and service, this straight shaft trimmer features pro-grade components and intuitive controls. Plus, our patented X-Torq® engine means more power and less fuel consumption and emissions compared to conventional engines.

Specification:

Capacity

• Cutting Width: 18.1 in

Engine

• Output Shaft Power: 1.21 hp
• Cylinder Displacement: 25.4 cm³
• Maximum RPM Output Shaft: 6,500 rpm
• Maximum Power Speed: 8,500 rpm
• Idling Speed: 3,000 rpm
• Clutch Engagement Speed (±120): 4,000 rpm
• Fuel Tank Volume: 17.25 fl oz / 0.51 l
• Fuel Consumption: 600 g/kWh
• Electrode Gap: 0.03 in
• Spark Plug: NGK BPMR8Y
• Torque, Max: 1.2 Nm
• Torque at Max RPM: 6,000 rpm

Dimensions

• Weight (Excl. Cutting Equipment): 9.7 lbs
• Tube Diameter: 0.94 in
• Tube Length: 58.386 in
• Product Size (L × W × H): 70.43 × 9.53 × 8.74 in

Equipment

• Gear Ratio: 19
• Drive Gear Angle: 30°
• Trimmer Head: T35 M10
• Harness: Not included
• Grass Blade / Saw Blade: Not included

Sound and Noise

• Sound Power Level, Guaranteed (LWA): 107 dB(A)
• Sound Pressure Level at Operator’s Ear: 98 dB(A)

Vibration

• Left Handle (ahv, eq): 3.0 m/s²
• Right Handle (ahv, eq): 2.8 m/s²

Lubricant

• Type: Husqvarna 2-stroke or equivalent at 50:1

Emissions

• CO Average (CARB/EPA): 254.3 g/kWh
