Description:

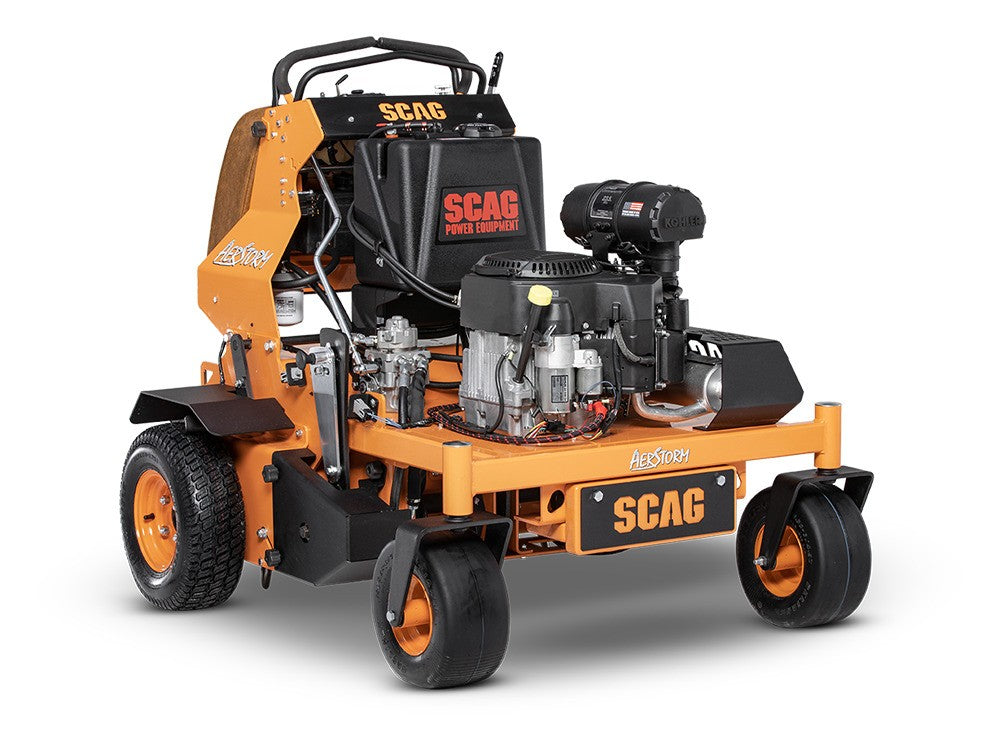

Aeration is vitally important for healthy turf, and it’s also an opportunity to expand your services. A new tool to tackle aeration with more efficiency, the stand-on AerStorm™ aerator allows you to get more done than ever before. Designed and engineered for long-lasting durability, improved productivity and all-day comfort, it’s time to take on your next challenge with the next generation of aeration.

Specifications:

• Model: AS30-23CV-DS
• Width: 30″
• Engine: Kohler® Command PRO®
• Includes: Drop Seeder Kit
• Horsepower: 23 hp
• Length: 68.6″
• Width: 49.8″
• Height: 51.2″
• Engine Brand: Kohler® Command PRO®
• Model: CV732
• Horsepower: 23.5 HP @ 3600 RPM
• Torque: 40.3 ft-lbs (peak)
• Engine Type: 4-cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft
• Displacement: 747 cc (45.6 cu in)
• Cylinders: 2 cast-iron sleeves
• Governor: Mechanical, variable speed (3600 rpm ±100), idle (1800 rpm ±150)
• Air Filter: Large capacity 2-stage canister
• Exhaust: Single exhaust canister muffler
• Fuel Pump: Integral with inline filter, float feed, two-barrel, adjustable idle, afterfire solenoid
• Oil System: Full pressure lube, full-flow filter, 2 qt. capacity
• Starting/Charging: 12V sealed battery, alternator, solid-state ignition, 15A charging (regulated)
• Engine Deck
• Deck Thickness: 1/4″ steel
• Fuel Tank Capacity: 5.5 gal (20.8 L)
• Drive Wheels: 18 x 6.5 – 8 pneumatic, tubeless
• Caster Wheels: 13 x 6.5 – 6 flat-free
• Brakes: Lever-actuated, both drive wheels
• Operator Platform: Heavy-gauge steel, no-slip surface, dual adjustable suspension
• Comfort Pad: Large, bolstered, tool-free removable cushion
• Drive System
• Type: Hydro drive (independent control of each wheel)
• Hydro Pumps: Two Hydro-Gear PG Series 10cc with dump valves and cooling fan
• Wheel Motors: Two Parker TG 14.5 cu in high-torque motors
• Cooling System: 3 qt. reservoir, SAE 20W50 fluid, 10-micron filter
• Steering: Twin-lever control
• Axles: 1.25″ heavy-duty motor shafts
• Wire Harness: 14 & 16 gauge
• Safety: Operator presence interlock (footplate-activated)
• Forward Speed: Up to 7.0 mph
• Reverse Speed: Up to 3.0 mph
• Product Specification
• Type: Plug-style aerator, mid/under-belly mount
• Aerating Width: 30″
• Aerating Depth: 1″ to 4″ (adjustable in 1/2″ increments)
• Tines: 48 steel, self-cleaning, replaceable coring tines
