4-BLADE IMPELLER - FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER: Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY - EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE: 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
LOCKING BOOM ARM AND INTAKE NOZZLE - SAFE AND CONVENIENT TRANSPORT: Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
Specification:

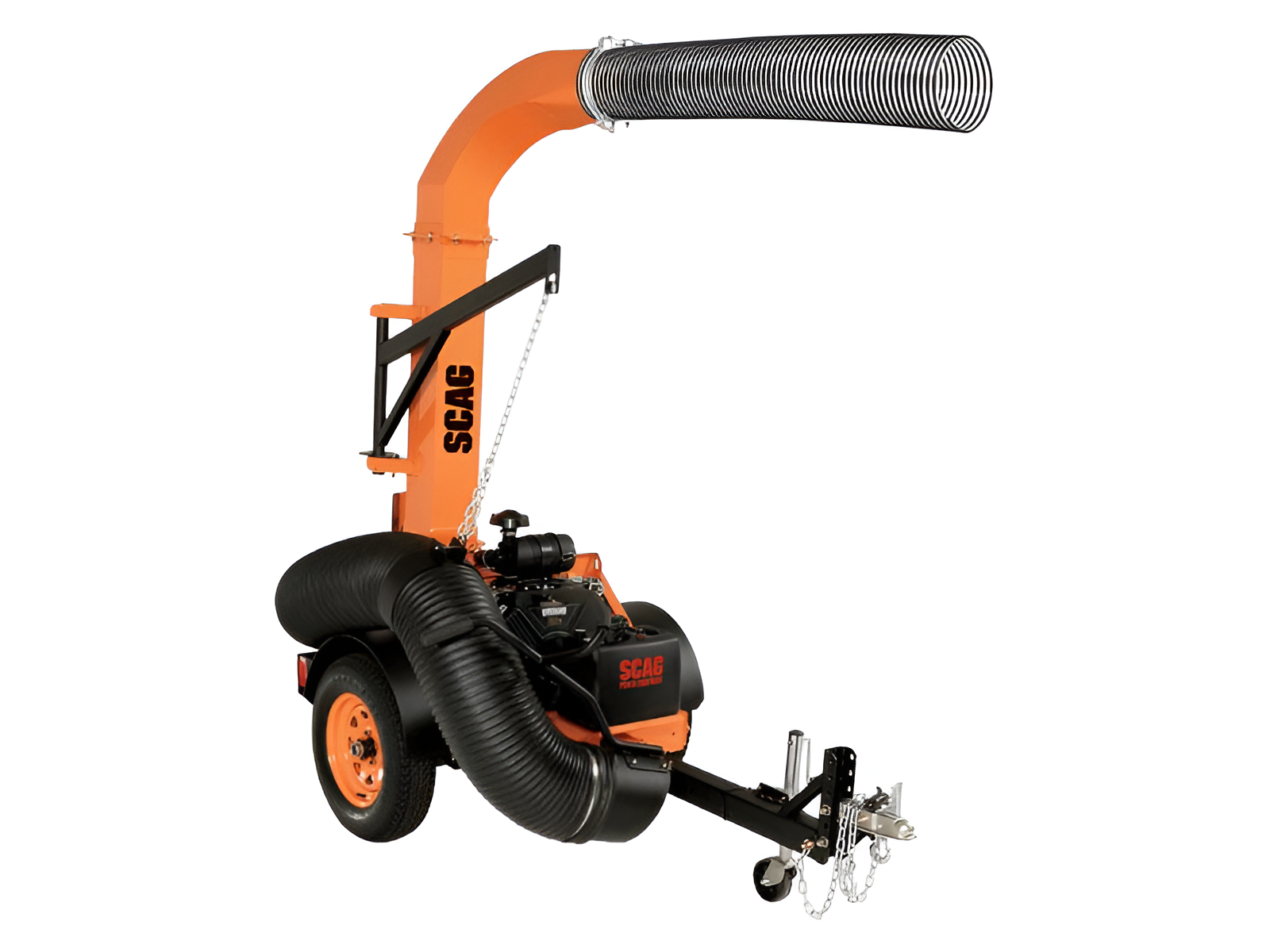

Manufacturer: SCAG Power Equipment
Model: Tow-Behind (TL20W-26CH-EFI)
Model Code: TL20W-26CH-EFI
Color: Orange
BODY
Frame: Construction - All-steel, welded
Blower Construction: Removable back panel for easy impeller and wear plate access
Blower Wear Plates: Standard 1/4 in. steel, replaceable
DIMENSIONS
Length:
Intake Hose: 120 in.
Discharge Tube: 60 in.
Height: 110 in.
Width:
Trailer: 53.5 in.
Impeller: 6.5 in.
Housing: 7.5 in.
Diameter:
Impeller: 20 in.
Discharge Tube: 8 in.
Weight: 990 lb.
ENGINE
Engine: Kohler® Command PRO® EFI, V-Twin
Horsepower: 26.5 hp
Starter: Electric
Fuel Tank Capacity: 5.5 gal. plastic tank with built-in fuel gauge
OPERATIONAL
Blades Output: 4,680 cfm
Discharge Tube: Clear thermoplastic
Tires: 205 / 75 R15 highway tires with steel wheels
