Description:

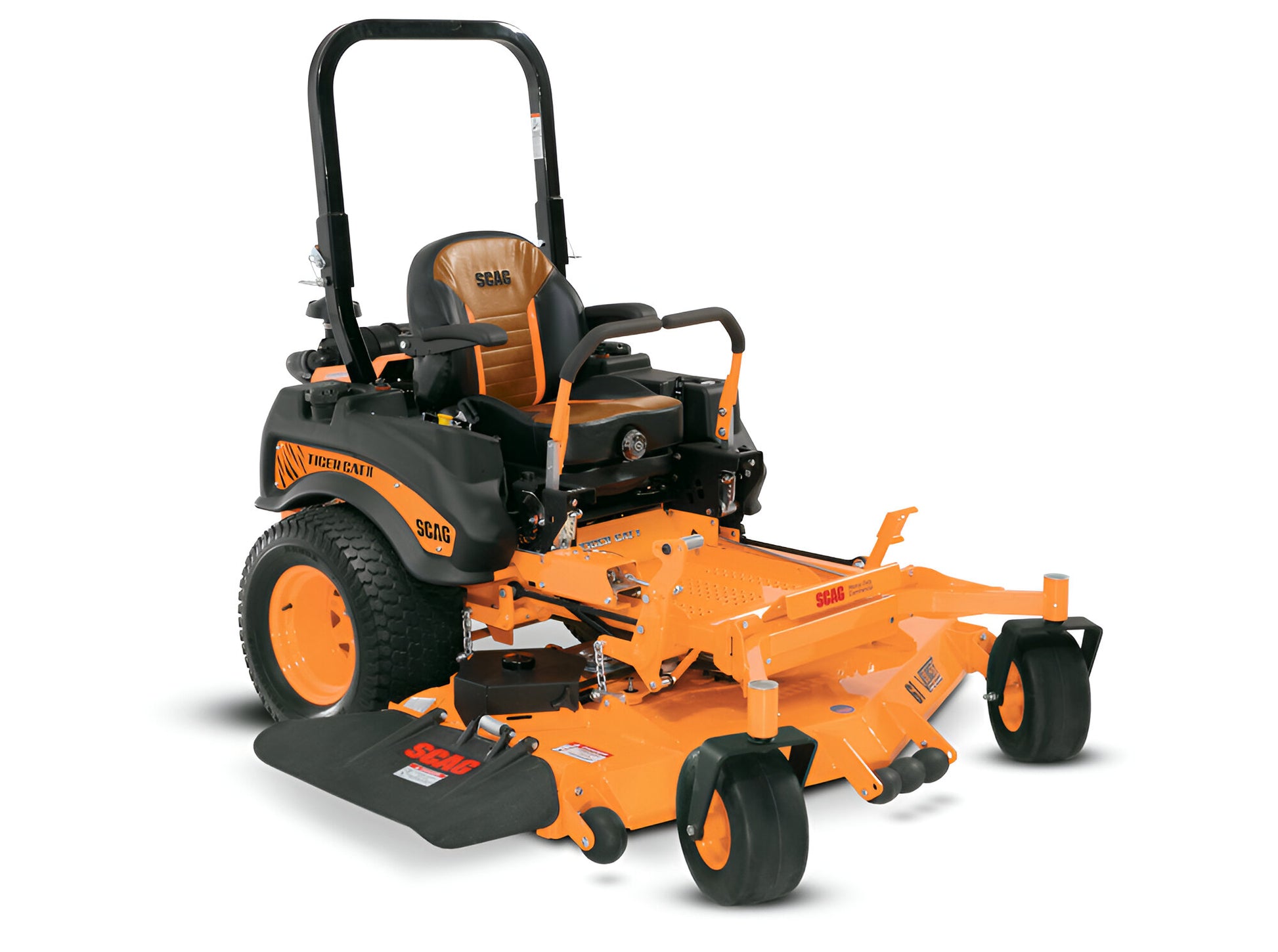

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

TRI-PLATE DECK TOPS:

Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).

FRONT BAFFLE CHAMBER:

Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.

WEAR PAD:

Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	180 Pounds	0 Inch	0 Inch
